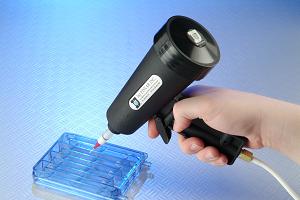

TD101 with an attached nozzle
|
TD101 set-up using a nozzle
|
TD101 set-up using Luer Lock tips
|
The TD101 tube-gun dispenser is engineered to specifically address the waste and discomfort that result from dispensing materials in collapsible tubes. A comfortable, balanced design that safely protects the tube from damage and the operator from contamination.
First time users are recommended to supply a tube sample.
|
| |
| Features |
| . Eliminates waste when dispensing from tubes |
| . Avoids material contamination |
| . Improves operator safety |
| . Prevents tube damage |
|
| |
| Model |
| TD101 |
Tube Dispenser |
|
| TD101 specifications |
| Size: |
7.50" x 3.00" x 6.75" (19.05 x 7.62 x 17.15cm) |
| Maximum tube length: |
7.38" (18.74 cm) 5.5 fl oz (162 ml) |
| Cycle: |
Manual (Trigger actuated) |
| Start pressure: |
Recommended at 20 psi (1.38 bar) |
| Maximum pressure: |
50 psi (3.45 bar) |
| Weight: |
Without tube 9.6 oz (272 gm) |
| |
|
|
| Replacement parts (included) |
| Item |
Part # |
Description |
| 1 |
560700 |
nozzle |
| 2 |
560699 |
nozzle nut |
| 3 |
560698 |
O-ring |
| 4 |
560697 |
lock ring |
| 5 |
560696 |
seal retaining ring |
| 6 |
560695 |
seal |
| 7 |
560705 |
5' hose |
| 8 |
560704 |
hose fitting |
| 9 |
560703 |
connector |
| 10 |
560702 |
cap |
| 11 |
560701 |
hose barb |
| 12 |
Tube |
(not supplied) |
| 13 |
560707 |
adapter nut |
| 14 |
560706 |
tip set |
| 15 |
560545 |
luer lock adapter |
| 16 |
880001-KIT |
includes:- |
| |
880001-A |
adapter |
| |
880001-B |
adapter |
| |
880001-C |
adapter |
|
