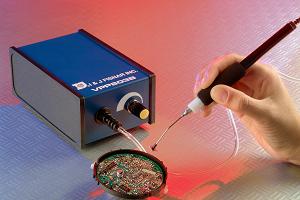

VPP803 with Vacuum Pick-Up Pencil
|
|
|
 |
|
|
VPP511 with Vacuum Pick-Up Pencil
The VPP511 and VPP803 vacuum pick-up systems are designed for delicate handling of small parts and components, including miniature, surface mount and chip scale packages.
The VPP803 is a non-electrical unit that has a vacuum pencil with a small hole that creates a vacuum.
The VPP511 features an air solenoid vacuum electrically activated by pressing a foot pedal.
|
| |
| Features (VPP803) |
| . No electricity required for operation |
| . Easy to control operation |
| |
| Features (VPP511) |
| . Foot Pedal controlled |
| . Operator's hand remains still during operation |
|
| |
| Models |
| VPP803B |
Pneumatic Vacuum Pick-Up Unit |
| VPP511-110 |
Vacuum Pick-Up Unit 110V |
| VPP511-220 |
Vacuum Pick-Up Unit 220V |
| 560046* |
Vacuum Pick-Up Pencil with hole (included with VPP803B) |
| 560046-NH* |
Vacuum Pick-Up Pencil with no hole (included with VPP511) |
|
| |
| Specifications (VPP803B) |
| Size: |
3.75" x 7.50" x 2.62" (9.52 x 19.05 x 6.65cm) |
| Cycle: |
Continuous |
| Air input: |
20 - 100 psi(1.33 - 7 bar) |
| Vacuum: |
Up to 16 in. hg |
| Weight: |
12 ounces (341 gram) |
| |
| Specifications (VPP511) |
| Size: |
5.5" x 7.00" x 2.63" (13.97 x 17.78 x 6.68cm) |
| Cycle: |
Foot pedal control |
| Air input: |
20 - 100 psi(1.33 - 7 bar) |
| Vacuum: |
Pressure gage display |
| Weight: |
2.5 lbs (1.14 kg) |
| |
|
|
