SV1000SS Stainless Steel Spray Valve

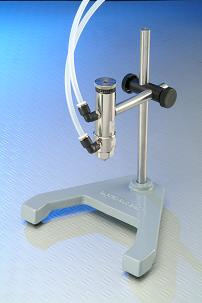

SV1000 Spray Valve mounted on a Stand

The SV1000SS spray valve provides close tolerance spray dispensing of fluids of up to 1000 cps. The SV1000SS is constructed of stainless steel to prevent corrosion from volatile materials. With a spray angle of 12 degrees and an operating frequency of 200 cycles/min, the SV1000SS is designed for spraying flux, urethane, paint, lubricants, and for coating and conformal coating applications.

Features

Shot rate frequency of 200 cycles/min
Suitable for spraying paint, flux, urethane, and lubricants
Stainless Steel fluid body
Stroke adjustment to fine-tune spray area
Nozzle design prevents clogging
Designed for materials under 1000cps

Models

SV1000SS	Stainless Steel Spray Valve
SVC100-110	Valve Controller 110V
SVC100-220	Valve Controller 220V

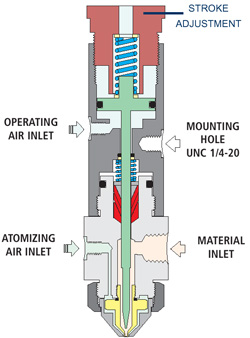

Operating Diagram of the SV1000

Specifications

Weight:	10.25oz (290gm)
Operating air pressure:	70 - 100 psi
Atomizing air pressure:	1 - 30 psi
Fluid viscosity range:	up to 1000 cps
Fluid pressure:	1 - 100 psi (0.1 - 7 bar) - depends on material viscosity
Nozzle diameter:	0.028 (0.71mm)
Flow rate:	up to 28cc/sec
Operating frequency:	over 200 cycles/min
Spray angle:	12º
Spray pattern:	circular (conical)
Operating air inlet:	10-32 thread with push-in fitting for 1/4 tube
Atomizing air inlet:	10-32 thread with push-in fitting for 1/4 tube
Material inlet:	1/8 NPT with compression fitting for 1/4 tube
