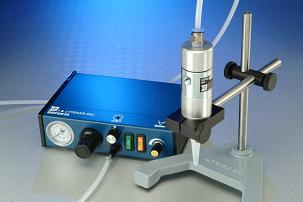

790HPNM with Reservoir and DSP501LF
Operating Diagram of the 790HPNM |
The 790HPNM-LF high pressure dispensing valve is designed to dispense high viscosity fluids such as silicones, RTV, sealants, paste and greases. The 790HPNM high pressure valve provides a snap-release shut off after dispensing, creating in a suck-back effect that prevents any dripping.
Features
- High-pressure fluid input up to 2500 psi
- Suitable for very high viscosity fluids
- Available in Aluminum or Stainless Steel
- Suck-Back eliminates post-dispense "dripping"
Models
| 790HPNM |
Aluminum High Pressure Valve |
| 790HPSSNM |
Stainless Steel High Pressure Valve |
| 580017NM |
repair kit with valve spool |
| 580018NM |
repair kit without valve spool |
| 560064 |
Tip Adaptor |
| I&J934K |
Air and Fluid I/O Accessory Kit |
| DSP501LF |
Dispenser 110V |
| DSPE501LF |
Dispenser 220V CE |
| VC-1195A |
Valve Controller 4-way 110V |
| VCE-1195A |
Valve Controller 4-way 220V CE |
Specifications
| 790HPNM-LF: |
Aluminum Valve Body |
| 790HPSSNM-LF: |
Stainless Steel Valve Body |
| Aluminum material: |
inlet & outlet blocks |
| Material inlet: |
1/4 npt |
| Air inlet (actuating): |
1/4 npt |
| Air pressure required: |
50 psi minimum |
| Material outlet: |
1/4 npt |
| Maximum input pressure: |
2500 psi |
| Seals: |
O-ring - viton, seats are glass filled teflon |
|
