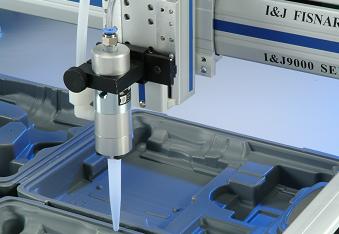

Valve Holder with a 790HPNM attached to a I&J9662-LF
I&J Fisnar dispensing robots come with mounting hardware to dispense from a 30cc syringe as a standard accessory. Valve holders are designed to mount dispensing valves in place of barrels or cartridges. The valves dispense material directly from a reservoir, which has more capacity than a syringe or cartridge. Each valve holder works with all sliding bars.
|
|
Model |
| Part # |
Description |
| 561355 |
710PTNM Pinch Tube Valve Holder |
| 561963 |
DV509 Diaphragm Valve Holder |
| 562151 |
VD510 Diaphragm Valve Holder |
| 562152 |
VP300 Poppet Valve Holder |
| 562150 |
VMP30H Poppet Valve Holder |
| 560928 |
MV-0180 Mini Valve Holder |
| 560927NM-T |
790HPNM Spool Valve Holder |
| 562150 |
VMS400 Spool Valve Holder |
| 562150 |
VDP150 Positive Displacement Valve Holder |
| 562088 |
SV1000SS and SV1217SS Spray Valve Holder |
|
| |
| LV-0126 Valve Holder |
| Part # |
Description |
| 560947 |
C-Clamp |
| 560948 |
Mounting Screws |
| 561092 |
Nylon Screw |
| 561096 |
Valve Screw |
| 561118 |
Mounting Plate |
|
| |
| PDV-1000 Valve Holder |
| Part # |
Description |
| 560947 |
C-Clamp |
| 560948 |
Mounting Screws |
| 561092 |
Nylon Screw |
| 561118 |
Mounting Plate |
| 561505 |
Valve Screws |
| 561509 |
Spacers |
| 561507 |
Allen Key |
| 561107 |
Hex Key |
|
|
